RGD-3029A

所屬分類：

DC橫流風(fēng)扇

關(guān)鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: Diameter of fan rotor ：Φ30mm
CONSTRUCTION:
Frame：SPCC & SECC
Impeller：Aluminum alloy
Motor：DC Brushlesss
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

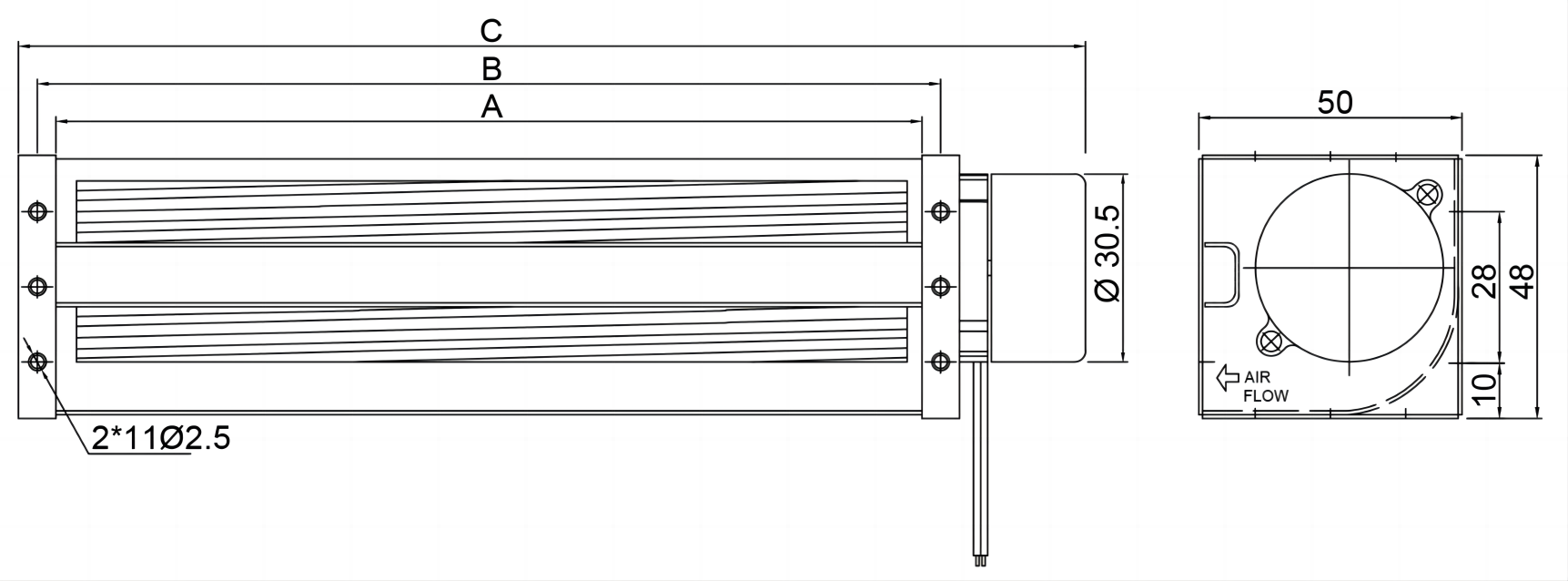

Dimensions（mm）

MODEL	BEARING			RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	A	B	C	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RGD-03009A12	98	108	132	12	10.2-13.8	0.16	1.92	3300	18.00	0.90	35.00
RGD-03009A24	98	108	132	24	20.4-27.6	0.14	3.36	3500	21.50	1.00	38.00
RGD-03015A12	160	170	194	12	10.2-13.8	0.19	2.28	3000	25.00	1.40	35.00
RGD-03015A24	160	170	194	24	20.4-27.6	0.16	3.84	3200	28.50	1.50	37.00
RGD-03019A12	198	208	232	12	10.2-13.8	0.22	2.64	2800	32.00	1.60	35.00
RGD-03019A24	198	208	232	24	20.4-27.6	0.18	4.32	3000	35.50	1.80	38.00
RGD-03029A12	300	310	338	12	10.2-13.8	0.26	3.12	2500	50.00	1.90	36.00
RGD-03029A24	300	310	338	24	20.4-27.6	0.10	2.40	2700	53.00	2.10	39.00
RGD-03035A12	359	368	400	12	10.2-13.8	0.40	4.80	2500	90.00	2.00	36.00
RGD-03035A24	359	368	400	24	20.4-27.6	0.20	4.80	2500	90.00	2.00	36.00
