RZD14025-A00

所屬分類：

DC軸流風扇

關鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: 140*140*25mm
CONSTRUCTION:
Glass fiber reinforced plastic：
Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

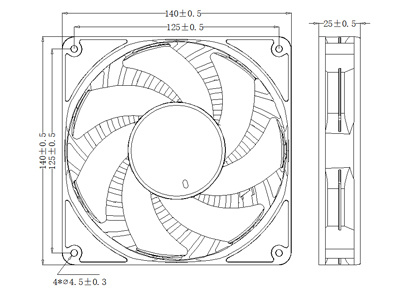

Dimensions（mm）

MODEL	BEARING	RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	BEARING	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RZD1402512H	BALL/SLEEVE	12	10.2-13.8	1.00	12.00	3000
RZD1402512M		12	10.2-13.8	0.68	8.16	2500
RZD1402512L		12	10.2-13.8	0.39	4.68	1800
RZD1402524H	BALL/SLEEVE	24	20.4-27.6	0.50	12.00	3000
RZD1402524M		24	20.4-27.6	0.33	7.92	2500
RZD1402524L		24	20.4-27.6	0.18	4.32	1800
