RGD-5029A

所屬分類：

DC橫流風(fēng)扇

關(guān)鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: Diameter of fan rotor ：Φ50mm
CONSTRUCTION:
Frame：SPCC & SECC
Impeller：Aluminum alloy
Motor：DC Brushlesss
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

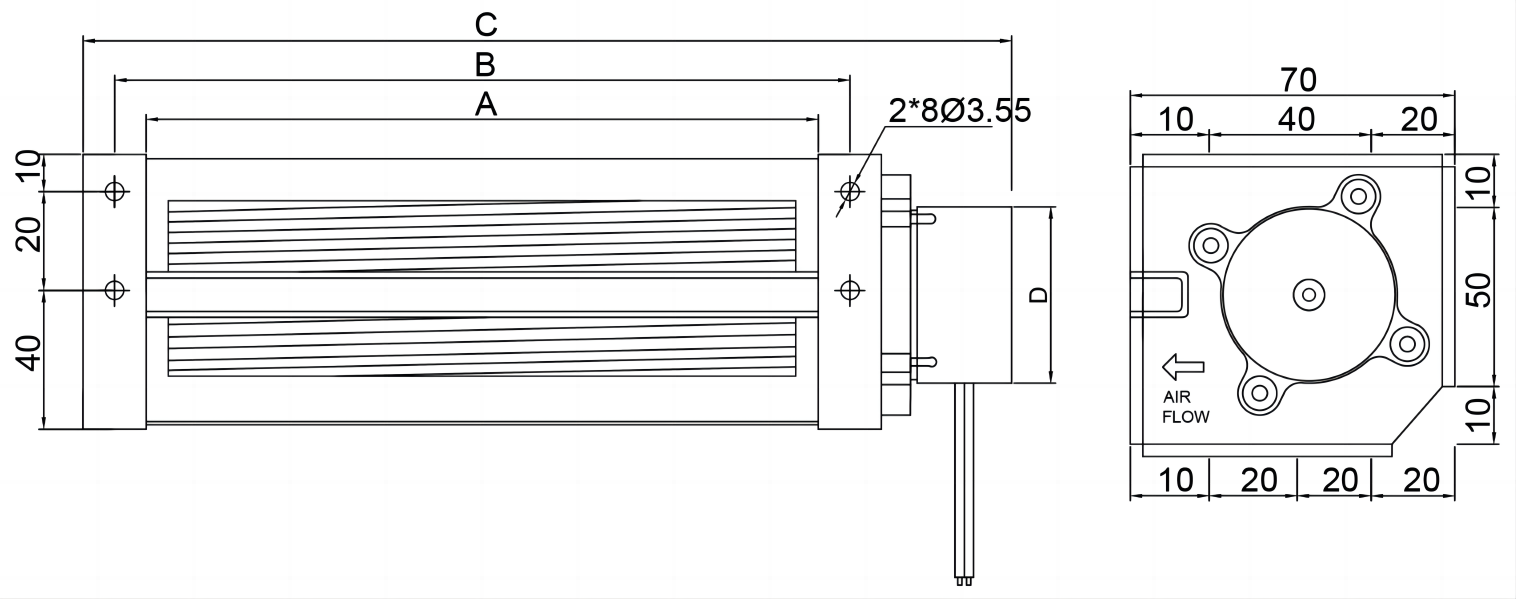

Dimensions（mm）

MODEL	BEARING				RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	A	B	C	D	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RGD-05009A12	98	108	141	38	12	10.2-13.8	0.28	3.36	2700	42.50	3.50	39.00
RGD-05009A24	98	108	141	38	24	20.4-27.6	0.16	3.84	2700	42.50	3.50	39.00
RGD-05019A12	198	208	252	50	12	10.2-13.8	0.80	9.60	2700	85.00	3.80	43.00
RGD-05019A24	198	208	252	50	24	20.4-27.6	0.48	11.52	2700	85.00	3.80	43.00
RGD-05029A12	298	308	352	50	12	10.2-13.8	0.90	10.80	2500	113.00	4.30	45.00
RGD-05029A24	298	308	352	50	24	20.4-27.6	0.55	13.20	2500	113.00	4.30	45.00
RGD-05035A12	358	368	412	50	12	10.2-13.8	1.10	13.20	2300	135.00	3.20	46.00
RGD-05035A24	358	368	412	50	24	20.4-27.6	0.51	12.24	2300	135.00	3.20	46.00
RGD-05042A12	430	440	475	50	12	10.2-13.8	1.10	13.20	2000	148.00	3.30	38.00
RGD-05042A24	430	440	475	50	24	20.4-27.6	0.50	12.00	2000	148.00	3.30	38.00
