產品詳情
SIZE: 50*50*15mm
CONSTRUCTION:
Glass fiber reinforced plastic：
Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing
|

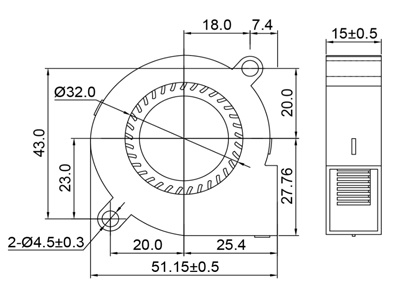

Dimensions（mm）
|

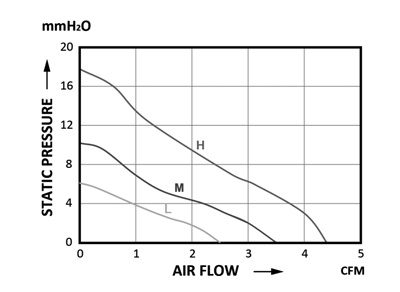

Performance Curve
|
| MODEL | BEARING | RATED VOLTAGE | OPERATION VOLTAGE | CURRENT | RATED INPUT POWER | SPEED | MAX AIR FLOW | MAX AIR PRESSURE | NIOSE | |
| VDC | V | A | W | RPM | CFM | mmH2O | dB-A | |||
| RLD501512H | BALL/SLEEVE | 12 | 10.2-13.8 | 0.15 | 1.80 | 5000 | 4.50 | 17.80 | 38.00 | |
| RLD501512M | 12 | 10.2-13.8 | 0.10 | 1.20 | 4000 | 3.50 | 10.50 | 32.00 | ||
| RLD501512L | 12 | 10.2-13.8 | 0.06 | 0.72 | 3000 | 2.50 | 6.20 | 25.00 | ||
