RLD5020-A00

所屬分類：

渦輪風(fēng)扇

關(guān)鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: 50*50*20mm
CONSTRUCTION:
Glass fiber reinforced plastic：
Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

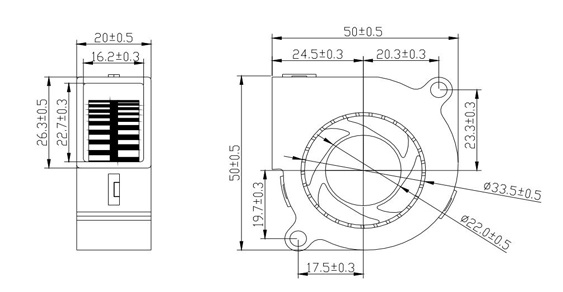

Dimensions（mm）

MODEL	BEARING	RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	BEARING	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RLD502012H	BALL/SLEEVE	12	10.2-13.8	0.30	3.60	5500	6.12	17.73	37.40
RLD502012M		12	10.2-13.8	0.19	2.28	5000	5.86	16.23	35.00
RLD502012L		12	10.2-13.8	0.14	1.68	4000	5.21	9.61	27.00
