RZD12025-A20

所屬分類：

DC軸流風(fēng)扇

關(guān)鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: 120*120*25mm
CONSTRUCTION:
Glass fiber reinforced plastic：
Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

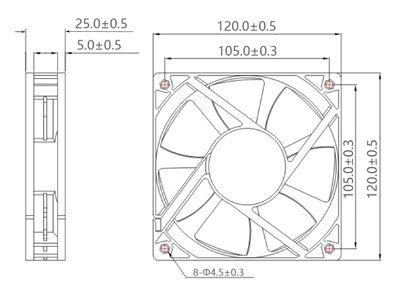

Dimensions（mm）

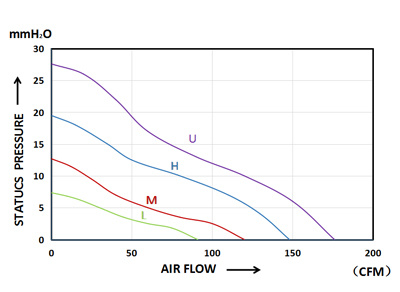

Performance Curve

MODEL	BEARING	RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	BEARING	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RZD1202512U	BALL/SLEEVE	12	10.2-13.8	1.27	15.24	6000	176.00	27.60	62.00
RZD1202512H		12	10.2-13.8	0.85	10.20	5000	148.00	19.50	56.50
RZD1202512M		12	10.2-13.8	0.52	6.24	4000	120.00	12.70	50.00
RZD1202512L		12	10.2-13.8	0.25	3.00	3000	91.00	7.36	44.00
RZD1202524U	BALL/SLEEVE	24	20.4-27.6	0.72	17.28	6000	176.00	27.60	62.00
RZD1202524H		24	20.4-27.6	0.40	9.60	5000	148.00	19.50	56.50
RZD1202524M		24	20.4-27.6	0.25	6.00	4000	120.00	12.70	50.00
RZD1202524L		24	20.4-27.6	0.14	3.36	3000	91.00	7.36	44.00
RZD1202548U	BALL/SLEEVE	48	24.0-55.2	0.33	15.84	6000	176.00	27.60	62.00
RZD1202548H		48	24.0-55.2	0.21	10.08	5000	148.00	19.50	56.50
RZD1202548M		48	24.0-55.2	0.14	6.72	4000	120.00	12.70	50.00
RZD1202548L		48	24.0-55.2	0.09	4.32	3000	91.00	7.36	44.00
