RZD12038-A00

所屬分類：

DC軸流風(fēng)扇

關(guān)鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: 120*120*38mm
CONSTRUCTION:
Glass fiber reinforced plastic：
Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

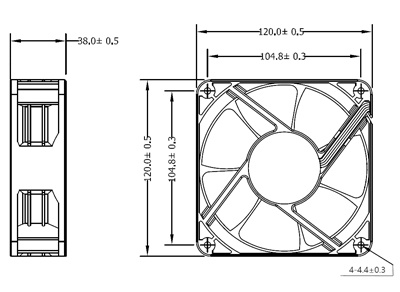

Dimensions（mm）

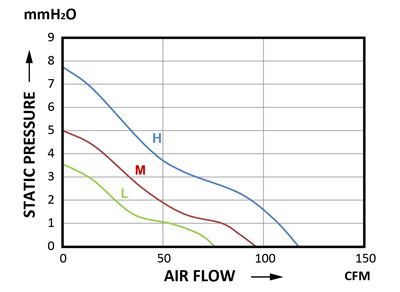

Performance Curve

MODEL	BEARING	RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	BEARING	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RZD1203812H	BALL/SLEEVE	12	10.2-13.8	0.65	7.80	3000	117.50	7.70	48.50
RZD1203812M		12	10.2-13.8	0.40	4.80	2500	96.50	5.00	43.00
RZD1203812L		12	10.2-13.8	0.23	2.76	2000	76.00	3.50	39.50
RZD1203824H	BALL/SLEEVE	24	20.4-27.6	0.35	8.40	3000	117.50	7.70	48.50
RZD1203824M		24	20.4-27.6	0.25	6.00	2500	96.50	5.00	43.00
RZD1203824L		24	20.4-27.6	0.15	3.60	2000	76.00	3.50	39.50
RZD1203848H	BALL/SLEEVE	48	24.0-55.2	0.16	7.68	3000	117.50	7.70	48.50
RZD1203848M		48	24.0-55.2	0.12	5.76	2500	96.50	5.00	43.00
RZD1203848L		48	24.0-55.2	0.08	3.84	2000	76.00	3.50	39.50
