RZD12038-A10

所屬分類：

DC軸流風(fēng)扇

關(guān)鍵詞：精密激光焊接

在線留言

產(chǎn)品詳情

SIZE: 120*120*38mm
CONSTRUCTION:
Glass fiber reinforced plastic：
Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:
Ball bearing： -30℃ to +75℃
Sleeve bearing： -10℃ to +75℃
INSULATION RESISTANCE:
10meg Ohm min.at 500VDC
（between frame and terminal）
DIELECTRIC STRENGTH:
5mA max.at 500VAC 60Hz one minute
（between frame and terminal）
FUNCTION:
Auto-restart option
frequency generator or rotation detection signal option
pulse width modulation control
EXPECTED LIFESPAN:
70000 hours at 40℃ for ball bearing
30000 hours at 40℃ for sleeve bearing

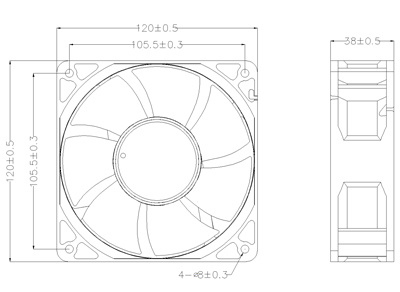

Dimensions（mm）

MODEL	BEARING	RATED VOLTAGE	OPERATION VOLTAGE	CURRENT	RATED INPUT POWER	SPEED	MAX AIR FLOW	MAX AIR PRESSURE	NIOSE
MODEL	BEARING	VDC	V	A	W	RPM	CFM	mmH2O	dB-A
RZD1203812U	BALL	12	10.2-13.8	3.20	38.40	5000
RZD1203812H		12	10.2-13.8	2.60	31.20	4500
RZD1203812M		12	10.2-13.8	1.50	18.00	4000
RZD1203812L		12	10.2-13.8	0.72	8.64	3000
RZD1203824U	BALL	24	20.4-27.6	2.40	57.60	5000
RZD1203824H		24	20.4-27.6	1.60	38.40	4500
RZD1203824M		24	20.4-27.6	0.76	18.24	4000
RZD1203824L		24	20.4-27.6	0.36	8.64	3000
RZD1203848U	BALL	48	24.0-55.2	1.20	57.60	5000
RZD1203848H		48	24.0-55.2	0.80	38.40	4500
RZD1203848M		48	24.0-55.2	0.38	18.24	4000
RZD1203848L		48	24.0-55.2	0.18	8.64	3000
